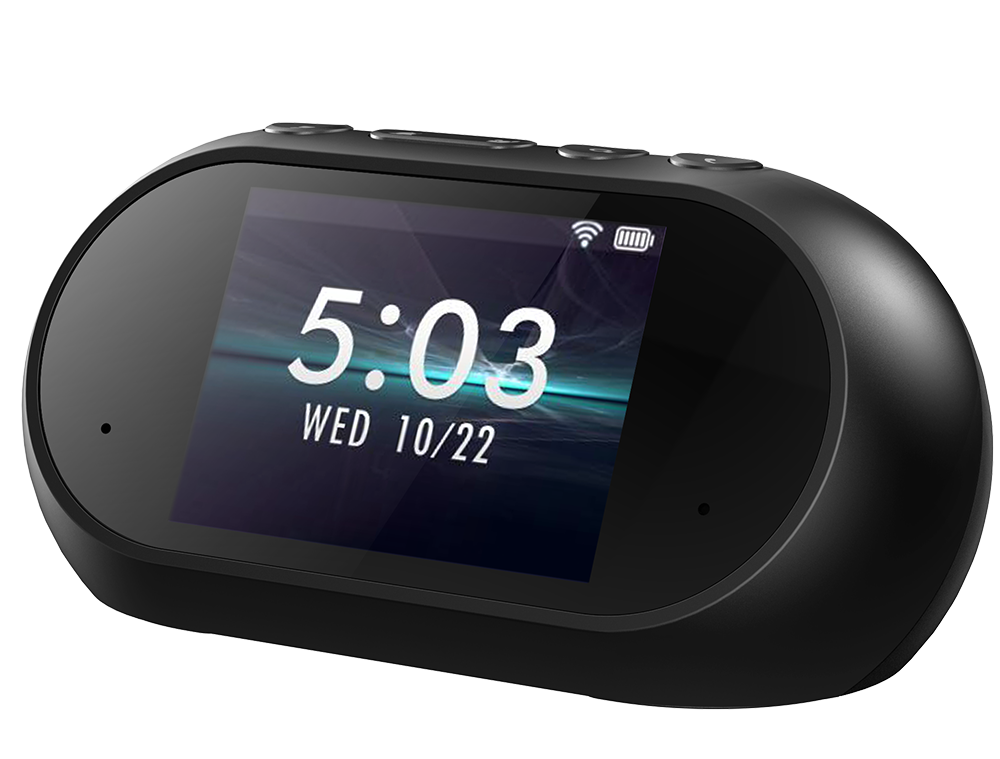

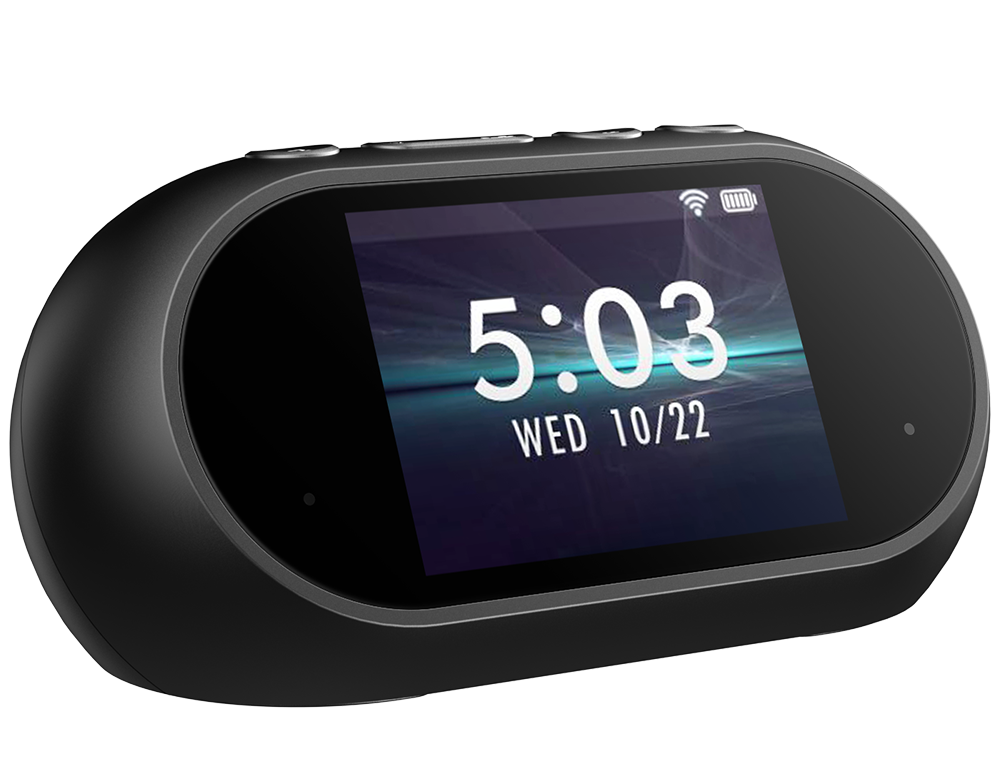

Fanvil i503W – Wire-Free SIP Indoor Station

The Fanvil i503W SIP Indoor Station redefines intercom flexibility. Designed specifically for retrofit and hard-to-wire installations, it eliminates the need for power cabling entirely — simply charge via USB-C and connect over Wi-Fi 6.

Featuring a 2.8-inch IPS colour display, the i503W supports both audio and video calls with compatible Fanvil door phones. HD audio is delivered via G.722 and Opus codecs, with a 5-metre voice pickup range and a 5W speaker for crystal-clear hands-free communication throughout the room.

Five programmable physical buttons provide one-touch access to key functions: menu, mute/intercom, keypad, and call. Remote door unlocking and one-touch family calling make day-to-day use effortless.

Ideal for residential communities, apartment buildings, villas, and legacy buildings where running new cable is impractical or cost-prohibitive.

Key Features:
• Wire-free battery-powered design – 2600 mAh built-in rechargeable battery

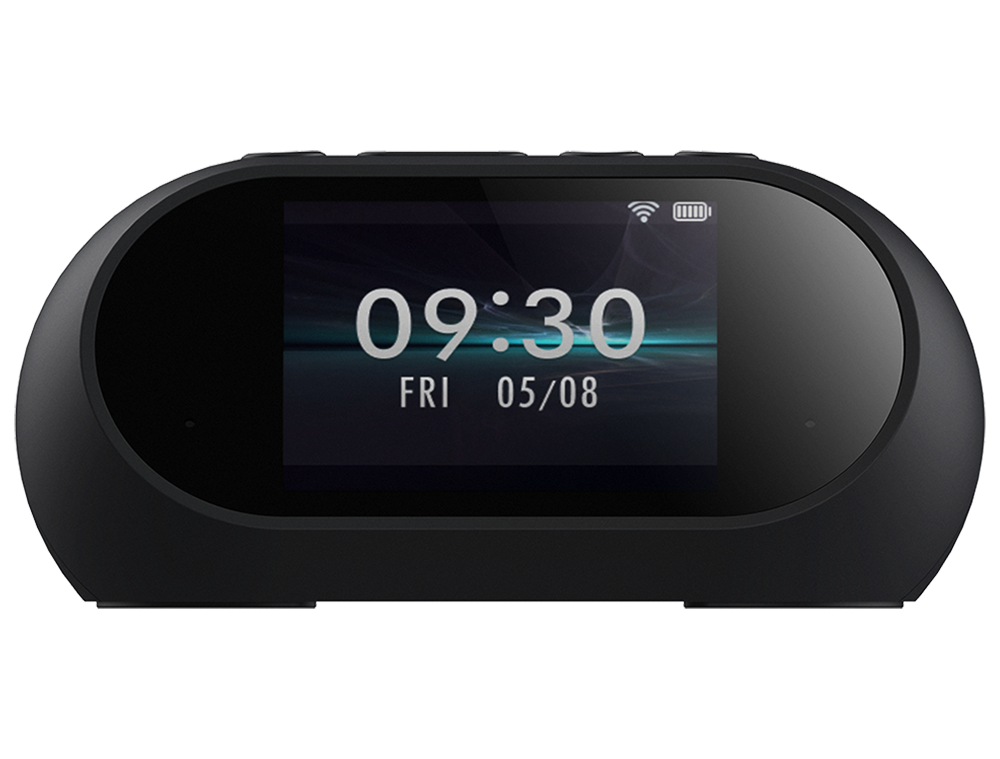

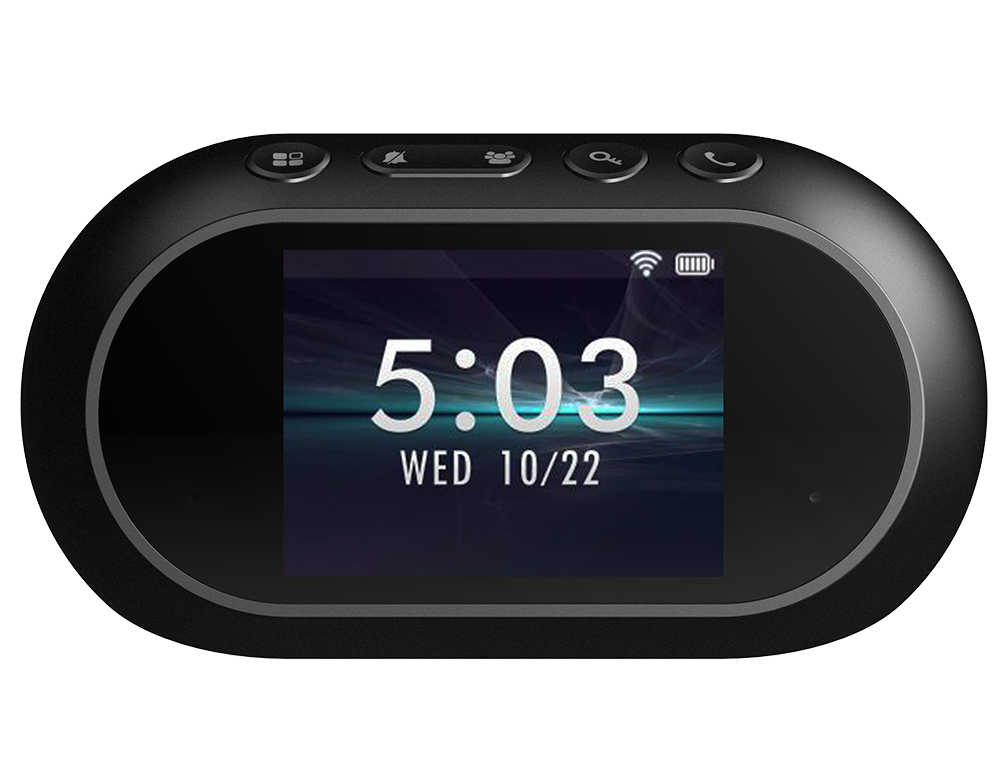

• 2.8″ IPS colour display (320 × 240 pixels)
• Wi-Fi 6 dual-band (2.4 GHz / 5 GHz) for fast, stable connectivity
• HD audio: G.722 and Opus codecs, up to 5-metre voice pickup
• 5W multimedia speaker with full-duplex AEC
• SIP 2.0 over UDP/TCP/TLS
• H.264 video support for door phone video calls

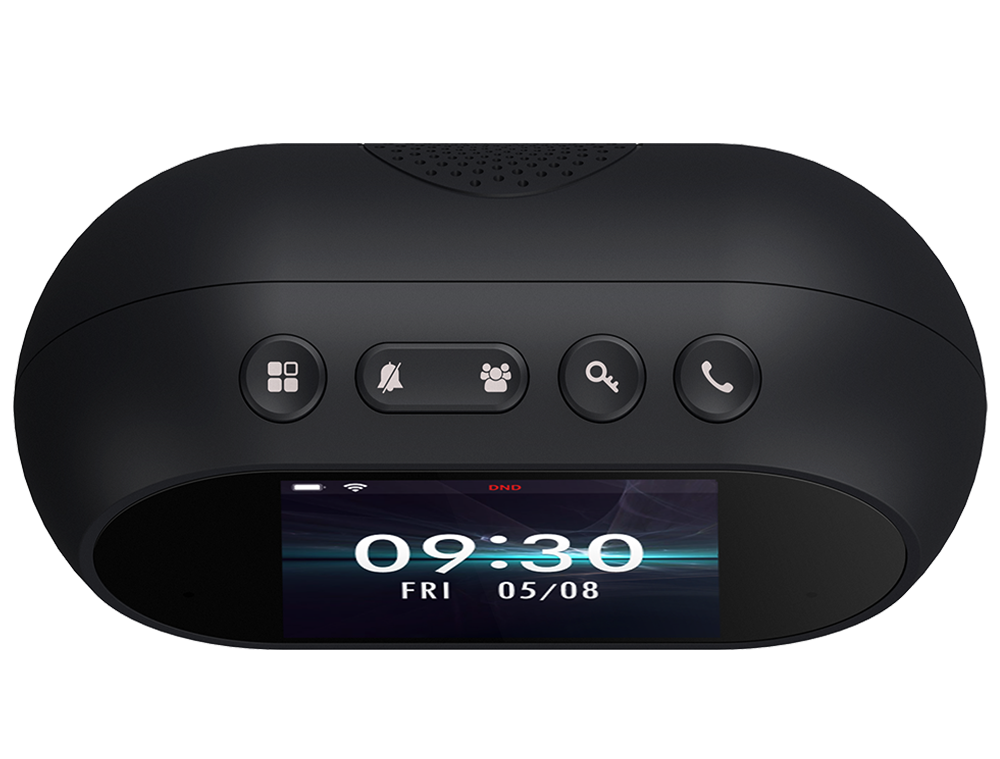

• 5 programmable physical buttons
• Remote door unlock and one-touch family call
• Do Not Disturb (DND) supported

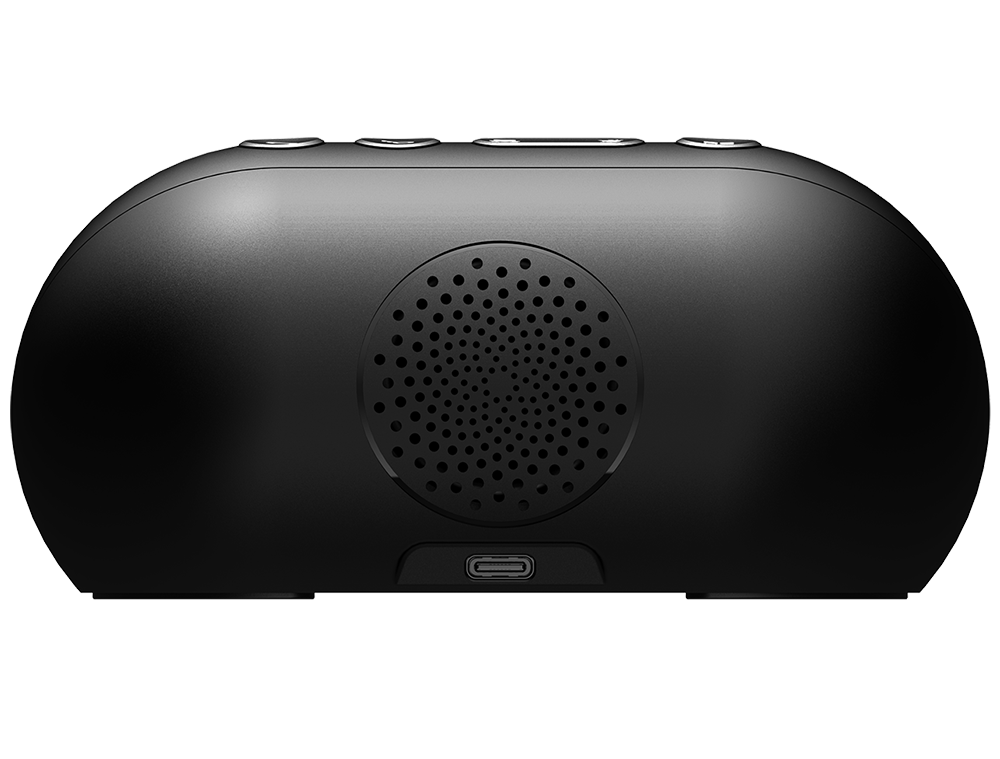

• Type-C charging, 5V/2A
• Desktop installation, no wall mounting required
• Operating temperature: -20°C to +60°C
