Fanvil i554W SIP Indoor Station

Category: VoIP Intercom & Access Control / Indoor Stations Brand: Fanvil Model: i554W (Wi-Fi) / i554 (Ethernet-only variant also available)

Overview

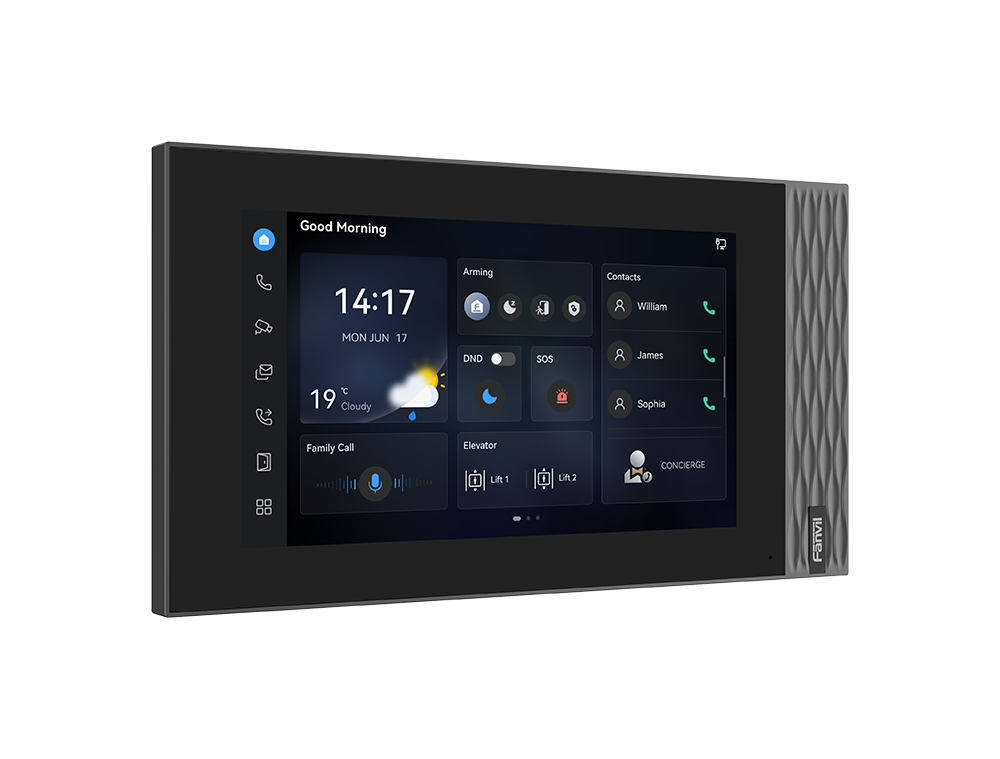

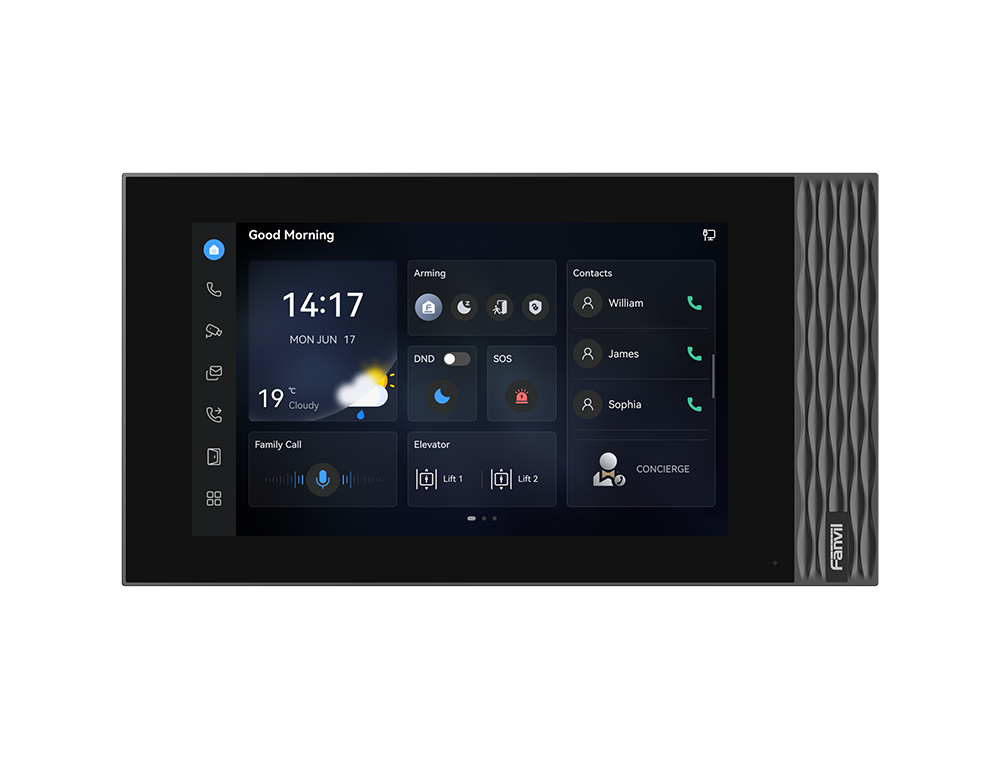

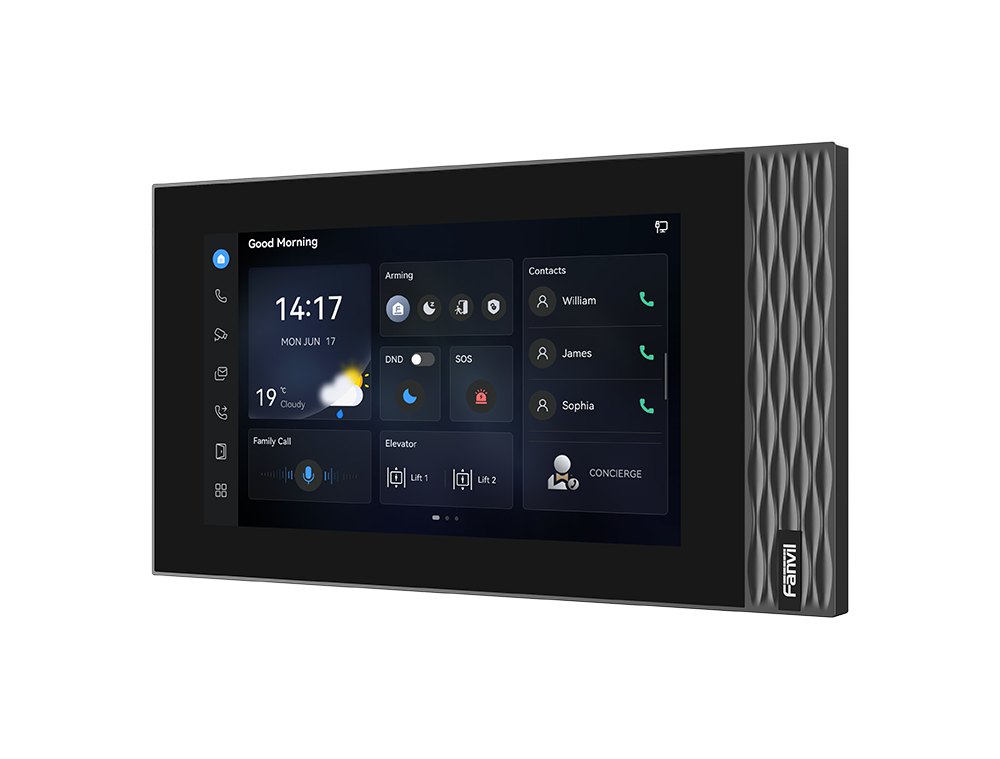

The Fanvil i554W is a 7-inch touchscreen SIP indoor station designed to pair with Fanvil's video door phones for complete building intercom and access control. From the station's bright capacitive touchscreen, residents or staff can view visitors at the door, answer calls, unlock doors remotely, and call room-to-room — all without leaving their desk or living room.

Built-in Wi-Fi 6 makes the i554W especially useful for retrofit projects and residential complexes where running new Ethernet cabling isn't practical, while still supporting full SIP compatibility, PoE power, and integration with existing access-control and alarm systems.

Fanvil_i554_DataSheet

Key Features

• 7" Capacitive Touchscreen (1024×600): Bright, responsive display for viewing visitors, taking calls, and navigating the interface.
• Native Wi-Fi 6: 2.4GHz 802.11 b/g/n/ax wireless connectivity simplifies installation where new cabling is impractical (i554W only).
• HD Audio with Noise Cancellation: Full-duplex speaker with acoustic echo cancellation keeps two-way conversations clear.
• One-Touch Family/Room Call: Instant intercom calling between indoor stations in the same apartment, villa, or office suite.
• Remote Door Unlock: Trigger door release directly from the touchscreen when paired with a compatible Fanvil door phone.
• Flexible Power: PoE (802.3af) or 12V DC power input.
• Video Support: Hardware-accelerated H.264 decoding (H.265 optional) for smooth video from paired door stations, up to 1080p.
• Rich I/O for Integration: Multiple alarm inputs, a short-circuit output, a doorbell input, and RS-485 support connection to existing security and building-management systems.
• Do Not Disturb Scheduling: Configurable DND windows so calls don't disturb residents during set hours.
• Wall-Mount Ready: Compatible with standard CN, US, UK, and EU junction boxes; an optional desktop stand is available separately.

Why Choose the i554W

Multi-unit residential buildings, villas, and small offices need an indoor station that's simple for residents to use every day and simple for installers to deploy without ripping into walls. The i554W's built-in Wi-Fi 6 removes the biggest obstacle in retrofit jobs — running new network cable — while its full SIP stack keeps it compatible with the same PBX and door-phone ecosystem as the rest of a Fanvil deployment. The result is a station property managers can roll out at scale without compromising on call quality or reliability.

Ideal Applications

• Residential apartment and townhouse complexes
• Villas and multi-room private residences
• Small office suites needing room-to-room intercom
• Retrofit projects where new Ethernet cabling isn't practical
• Multi-tenant buildings using Fanvil door phones for access control

Technical Specifications

Frequently Asked Questions

What's the difference between the i554 and i554W? The i554W adds native 2.4GHz Wi-Fi 6 connectivity. The standard i554 is Ethernet-only.

Can the i554W be powered over Ethernet? Yes. It supports PoE (802.3af) as well as 12V DC/1A power.

What video resolution does it support? It hardware-decodes H.264 (H.265 optional) video up to 1080p from a paired door station.

Does it support room-to-room calling? Yes — the one-touch family call feature lets multiple indoor stations in the same property call each other directly.

How is it installed? It wall-mounts using standard CN, US, UK, or EU junction boxes. A desktop stand is available as an optional accessory.

What environments is it designed for? Residential complexes, villas, and small office buildings looking for a cost-effective SIP indoor station with video intercom and access control.
