X305 || FANVIL Big Button IP Phone
Additional information
| Weight | 1080 g |
|---|---|
| Dimensions | 340 × 202 × 740 mm |

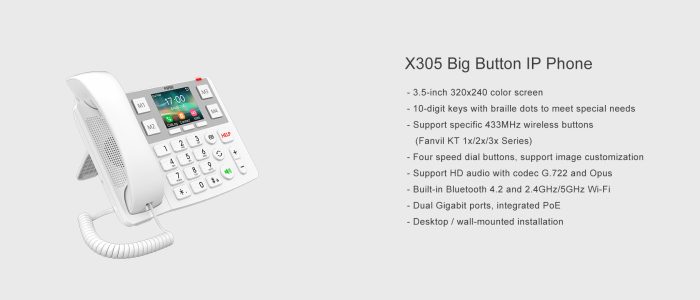

Fanvil X305 Big Button IP Phone
Overview
The Fanvil X305 is a big button IP phone designed for seniors and users with special needs. Oversized keys with braille dots, a 3.5-inch colour screen and four photo speed-dial keys make calling simple, while a hearing aid compatible (HAC) handset and HD voice keep conversations clear.
Built for aged care, hospitals and assisted living, the X305 supports up to 10 wireless 433 MHz emergency pendants and has a dedicated HELP key, so residents and patients can call for assistance quickly. Dual-band Wi-Fi, Bluetooth 4.2, Gigabit Ethernet and PoE give flexible installation options, and the phone can sit on the desk or be wall mounted with the optional Fanvil WB110 bracket.
Key Features

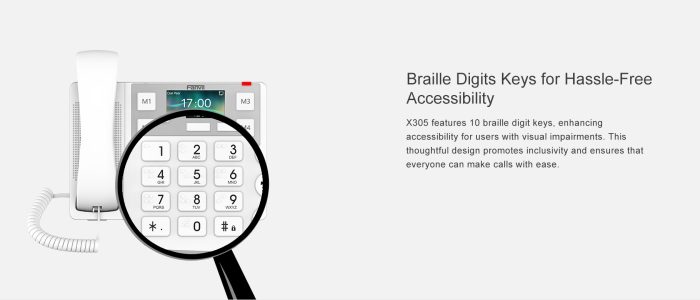

- Big Buttons with Braille Dots — Large, easy-to-press keys designed for seniors and users with low vision or limited dexterity.
- Photo Speed-Dial Keys — 4 DSS keys with customisable images, so users can call family or staff by pressing a photo.

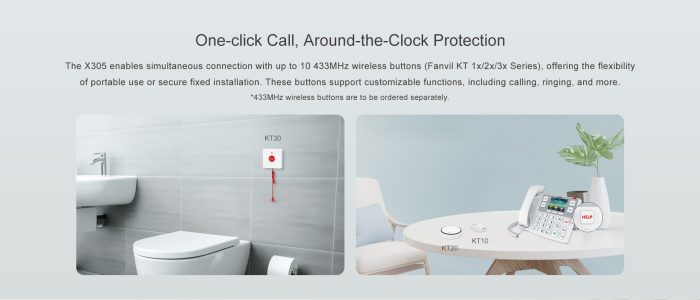

- Emergency Assistance — Dedicated HELP key plus support for up to 10 wireless 433 MHz emergency pendants.
- Hearing Aid Compatible — HAC handset, HD voice and adjustable volume for clear, comfortable calls.

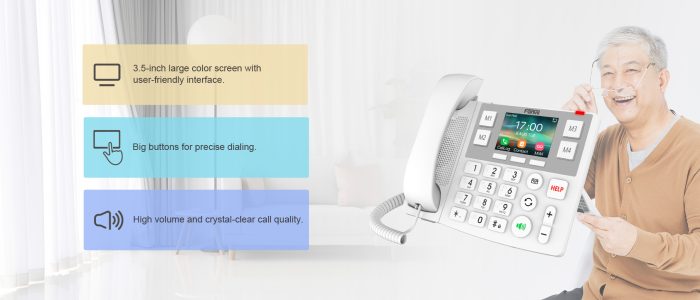

- 3.5″ Colour Screen — Clear 320 × 240 display for easy reading.

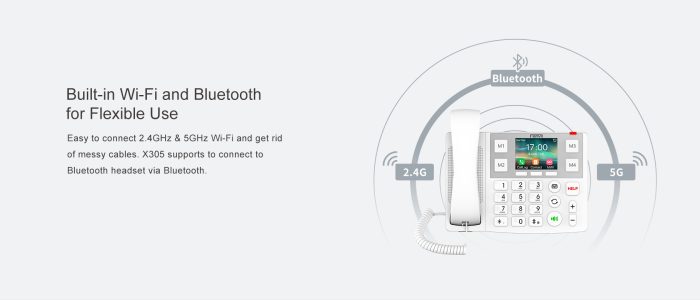

- Dual-Band Wi-Fi & Bluetooth — Built-in 2.4 GHz / 5 GHz Wi-Fi and Bluetooth 4.2 for installation where cabling is impractical.
- Gigabit Ethernet & PoE — Dual bridged 10/100/1000 Mbps ports with integrated PoE.
- Desk or Wall Mount — Adjustable desk stand, or wall mount with the optional Fanvil WB110 bracket.
- Business-Grade Management — 2 SIP lines, auto-provisioning, web management, call recording and voice messages (with server or USB drive).
Why Choose the X305
Standard office phones are hard to use for many older people and patients. The X305 brings together large tactile keys, photo dialling, hearing aid compatibility and emergency call features in one SIP phone that works with standard VoIP platforms. For aged care providers, hospitals and the integrators who support them, it is a simple way to give residents an easy-to-use phone while keeping it on the same managed phone system as staff.
Ideal Applications
- Aged care and nursing homes
- Retirement and independent living villages
- Hospitals and patient rooms
- Disability support and assisted living
- Home care and seniors living at home
- Hotels and accessible accommodation
Technical Specifications
| Category | Specification |
|---|---|
| Display | 3.5″ colour screen, 320 × 240 |
| Keys | Big buttons with braille dots; 4 DSS keys with custom images; 3 soft keys; MWI, Redial and HELP keys; volume up/down; hands-free |
| SIP Lines | 2 |
| Audio | HD voice; HAC handset; handset and hands-free; full-duplex AEC, NR, AGC, PLC, adaptive jitter buffer |
| Codecs | G.711a/u, G.723.1, G.726, G.729A/B, iLBC; wideband G.722, Opus |
| Emergency Accessories | Up to 10 wireless 433 MHz emergency pendants |
| Network | 2 × RJ45 10/100/1000 Mbps (network and PC, bridged); integrated PoE |
| Wi-Fi | Dual-band 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n); WPA/WPA2-PSK, 802.1X EAP |
| Bluetooth | Bluetooth 4.2 |
| Other Ports | RJ9 handset, RJ9 headset, USB 2.0, security slot |
| Headsets | Wired RJ9 headsets; EHS for Jabra (Fanvil EHS20) and Plantronics (APD-80) |
| Contacts / Call Log | 1,000 local contacts; 1,000 remote XML/LDAP; 600 call records |
| Protocols | SIP 2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv4/IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069; VLAN, QoS; AES128/256 |
| Provisioning | FTP/TFTP, HTTP/HTTPS, DHCP Option 66, SIP PnP, TR-069; web management |
| Power | PoE (1.65–9.07 W) or DC 5 V/2 A adapter (optional, 1.09–6.76 W) |
| Installation | Desktop stand (45° or 55°) or wall mount with optional Fanvil WB110 bracket |
| Dimensions | 236 × 157.4 × 162.4 mm (45° desk); 236 × 142.3 × 179 mm (55° desk); 236 × 98.9 × 204.2 mm (wall) |
| Working Environment | 0°C to 45°C; 10%–95% humidity |
| Gift Box / Carton | 340 × 195 × 72 mm / 10 units per carton |
| Package Includes | X305 phone, HD handset, handset cord, 1.5 m Ethernet cable, desk stand (power adapter optional) |
Frequently Asked Questions
Who is the Fanvil X305 designed for?
Seniors and users with special needs, particularly in aged care, hospitals and assisted living. Big buttons with braille dots, photo speed-dial keys and a hearing aid compatible handset make it easy to use.
How do the emergency features work?

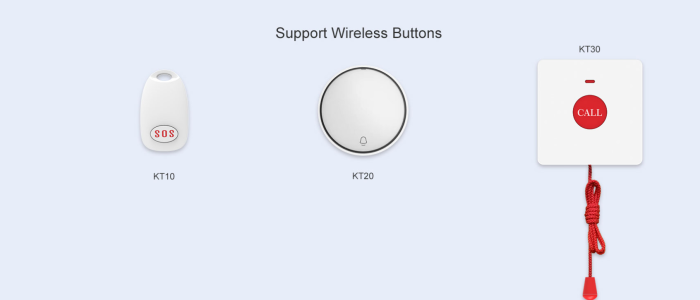

The X305 has a dedicated HELP key and supports up to 10 wireless 433 MHz emergency pendants, which can be programmed to call staff or family for assistance. Pendants are sold separately.
Can the X305 be wall mounted?
Yes. Use the optional Fanvil WB110 wall mount bracket, designed specifically for the X305.
Does it need a network cable?
No. The X305 has built-in dual-band Wi-Fi, so it can connect wirelessly. It also has Gigabit Ethernet with PoE for wired installations.
Is it compatible with my phone system?
The X305 is a standard SIP phone with 2 SIP lines and supports common auto-provisioning methods, so it works with most SIP-based PBX and hosted platforms. Confirm platform support before large deployments.
